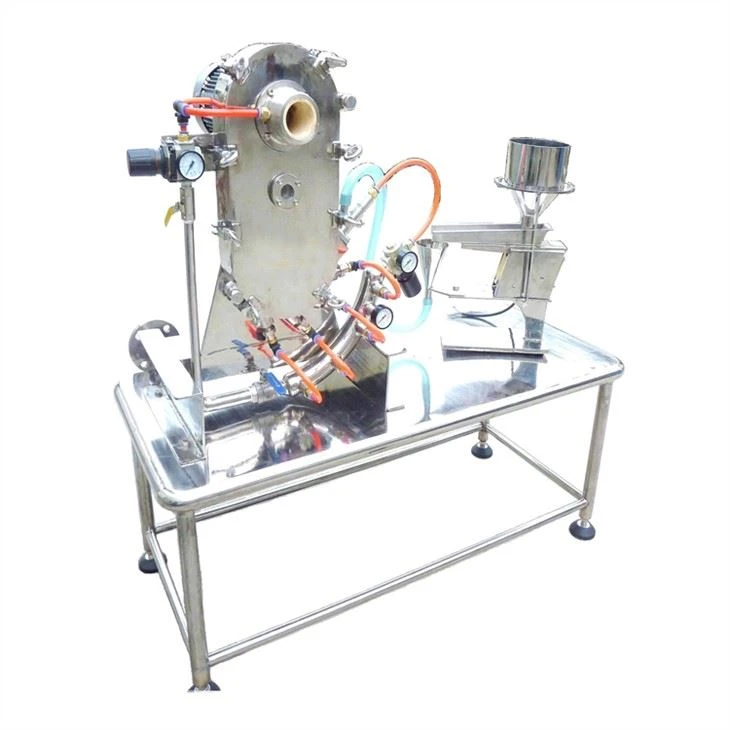

Circular Baking Machine

The Circular baking machine is also called the racetrack jet mill, which is named after the racetrack-shaped design of the grinding cavity. The machine consists of a feed port, a feeding ejector, a mixing chamber, a venturi tube, a crushing nozzle, a crushing cavity, a primary and secondary classification cavity, a rising pipe, a return channel and a discharge port.

Send Inquiry

Introduction:

The Circular baking machine also called the racetrack jet mill, which is named after the racetrack-shaped design of the grinding cavity. The machine consists of a feed port, a feeding ejector, a mixing chamber, a venturi tube, a crushing nozzle, a crushing cavity, a primary and secondary classification cavity, a rising pipe, a return channel and a discharge port.

The material being crushed by the circulating tube elliptical jet mill is carried out in an elliptical racetrack-shaped cavity, a series of nozzles are arranged under the main machine, and the elliptical pulverizing cavity is installed upright on the frame.

Technical Specification(Circular baking machine):

Parameters/Model	MKL-CT3	MKL-CT6	MKL-CT10	MKL-CT20
Production capacity（kg/h）	20-35	40-70	80-140	200-300
Air consumption(m³/min)	3	6	10	20
Crushing pressure(Mpa)	0.7-0.8	0.7-0.8	0.7-0.8	0.7-0.8
Feed particle size (mesh)	40-100	40-100	40-100	40-100
Grinding fineness (d97, μm)	5-20	5-20	5-20	5-20
System power(kw)	27	52	85	150

Whole set photo:

Factory photo and Cases:
