Our sales team is becoming more and more efficient, with more and more new customers and more mature air jet mill design, Dipping Mill, Ultro Micro Pulverizer. The humanistic spirit of our company's employees is tenacious struggle, positive progress, collective supremacy, unity and cooperation. We hope that our employees will safeguard the interests of the enterprise, cherish the honor of the enterprise and keep the secrets of the enterprise. Our working philosophy is integrity management, people-oriented, based on practical, continuous innovation. We hope that the staff will put their minds together to the overall situation of the enterprise and bring their strength together to the development of the company.

Product Application

MKL-UL Model Superfine Crusher is a mature product, which is used to make fine powder about 80-300mesh. It is a kind of mechanical pulverizer. It is widely application for pharmaceutical industry, chemical industry, foodstuff industry, etc. for powder grinding.

Working Principle

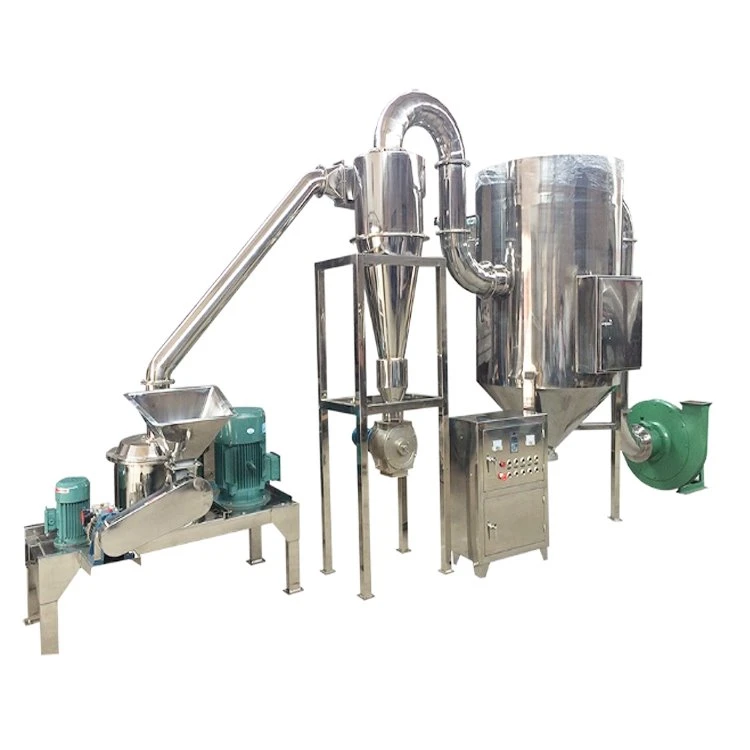

This superfine crusher is designed with the parts of main Unit, cyclone discharge, dust collector, control panel, etc.
Main Unit: including Feeding Hopper, Auger Feeder (speed controlled), Rotor (blades and disc), Stator (liner with serrated teeth), Classifier (driven by motor), Frame, etc.
Cyclone Discharge: including a Cyclone, Rotary Valve for discharge, Pipes, etc.
Dust Collector: Including Filter Pockets, Pockets Holders, Filter Case, Pockets Cleaning device, Pipe, Fan, etc.
The raw materials, normally less than 10mm, being fed into the grinding chamber by auger slowly, are impacted, crashed, sheared by rotor and stator at high speed into super fine powder. The powder size is determined by the rotary speed of classifier. So there is no mesh sieve in the unit. The speed of classifier is controlled by inverter. The faster the classifier rotates, the finer the powder is. When the powder reaches the desired size, it is sucked out by fan into cyclone. Most powder are discharged via rotary valve. A little of superfine powder, as they are too light, are sucked into dust collector and filtered by pockets.
We are specialized air classifier mill manufacturer, this machine is designed according to GMP standard and made of stainless steel.

Model	MKL-UL15	MKL-UL30	MKL-UL45	MKL-UL60	MKL-UL80	MKL-UL100
Capacity (kg/h)	30-350	50-800	80-1000	100-1200	200-1500	300-1800
Feed Size (mm)	<10	<10	<10	<10	<10	<10
Final Size (mesh)	80-500	80-500	80-500	80-500	80-500	80-500
Total Power (kw)	14.87	42.12	60.5	70.45	114	134
Rotary Speed (rpm)	5500	3650	3200	2900	2300	2000
Weight (kg)	1300	2000	2200	3500	3800	4000

The ability of independent innovation is of great significance to improving the product design and international competitiveness of our Ultrafine Pulverizer 200 -400 Mesh Fine Powder for Starch, Icing Sugar, Spice, Salt, Chemical, Medicine, Herb, Cereal, Resin. We insist on being market-oriented and providing the highest value services to our customers at the lowest cost. We warmly welcome you to visit our company, we have many samples for you to choose from.
